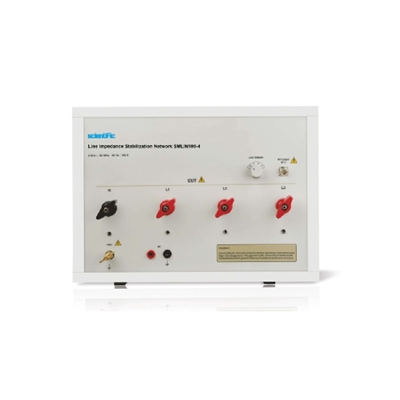

Three Phase 4 Wire LISN as per CISPR 16-1-2

Three Phase 4 Wire LISN as per CISPR 16-1-2

  • Features/Description

  • Topology : V-LISN
  • Frequency Range : 9 kHz-30MHz
  • AMN Impedance : (50 µH + 5 Ω) || 50 Ω
  • Continuous Load Current: 20 A
  • Pre-Filter Choke : 250µH
  • Max. Input Voltage : AC: 300 V, 50 / 60 Hz, DC: 600 V
  • Rotary switch for Three Lines and Neutral selection
  • Available with BNC Connector / N type (F) connector option
  • EUT connector: CEE/ Wing Terminals / SUPERCON options available
  • Other Available Options:
  • Transient Limiter
  • Common mode/ Differential mode measurement
  • Remote Control
