EMI EMC test Solutions for Emission
>
Line Impedance Stabilization Network
Single phase two wire LISN as per CISPR 16-1-2
Back

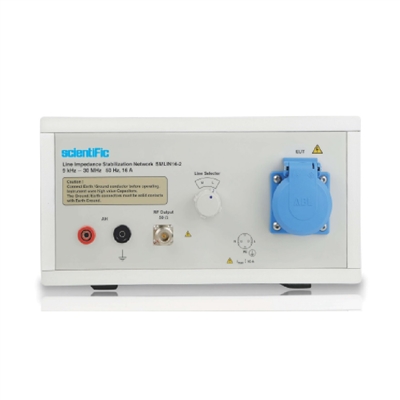

Single phase two wire LISN as per CISPR 16-1-2
Features/Description
Topology : V-LISN
Frequency Range : 9 kHz-30MHz
AMN Impedance : (50 µH + 5 Ω) || 50 Ω
Continuous Load Current: 16A
Pre-Filter Choke : 250µH
Max. Input Voltage : AC: 300 V, 50 / 60 Hz, DC: 600V
Rotary switch for Line and Neutral
Available with BNC Connector / N type (F) connector option
EUT connector: Indian / CEE/ Schuko / SUPERCON / Wing Terminal options available
Available Options:
Transient Limiter
Common mode/ Differential mode option
Remote Control
Datasheet
Add to Enquiry
