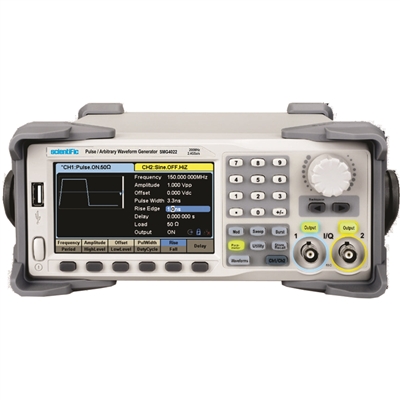

Pulse / Arbitrary Waveform Generator SMG4000 Series

Modulation
AM, FM, PM, FSK, ASK and PWM

No. of Channels
2

Frequency
200/350/500 MHz

Sampling Rate
2.4 GSa/s

Vertical Resolution
16 bits

Waveform Length
20 Mpts

Frequency Counter
400 MHz

PC Interface
USB, LAN

Dual-channel, 500MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range.
High-performance sampling system with 2.4GSa/s sampling rate and 16-bit vertical resolution.
Sweep and Burst Function, Harmonic Function.
196 built-in Arbitrary Waveforms.
High precision Frequency Counter.

Datasheet Manual Add to Enquiry

SMG4000 Series
