Newtons4th Ltd

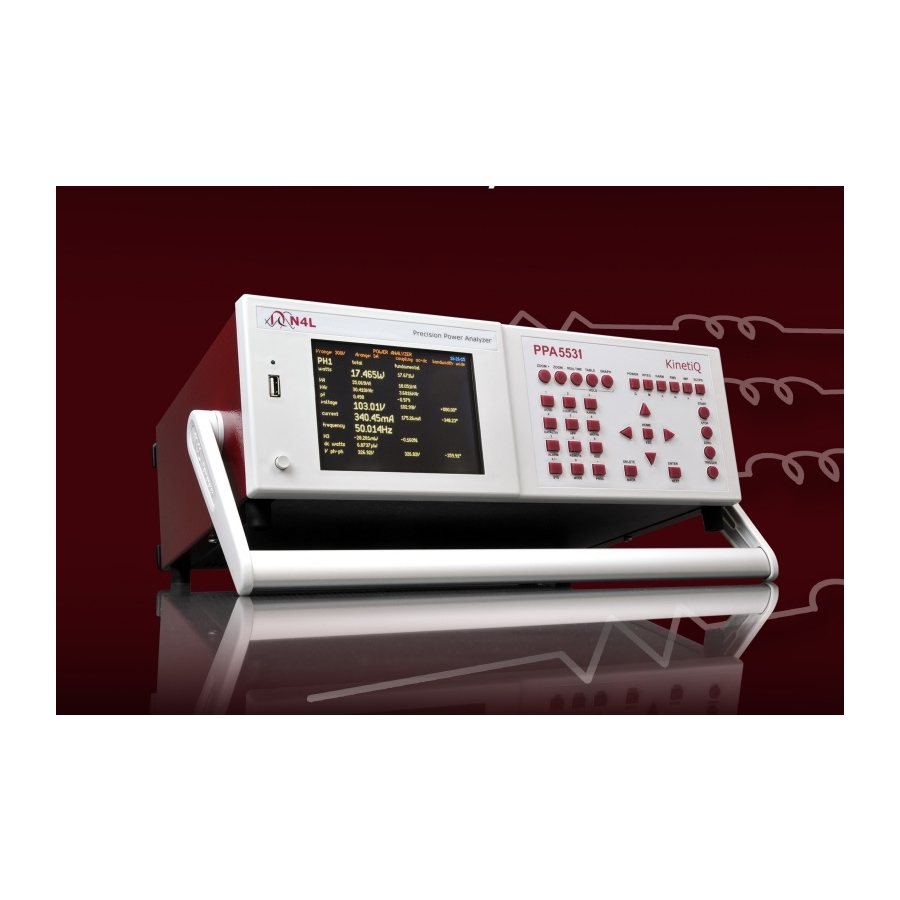

PPA55x1 + Impedance Network + AC Power Source

IEC61000 Harmonics and Flicker Analyzer

  • Features/Description

  • 0.01% Basic accuracy
  • Frequency range DC and 10mHz to 1MHz
  • High precision internal shunts Superior accuracy to any external shunt
  • 5 millidegree phase accuracy Necessary for low power factor applications
  • 50 Arms (1000 Apk) & 1000 Vrms (3000 Vpk) direct input
  • Standard current (50Arms) options
  • High speed sampling on all channels
  • True real time analysis with no measurement gap
  • 1, 2 or 3 phase versions master – slave mode for 4, 5 or 6 phase
  • Real time Digital, Tabular, Graphic and Oscilloscope displays
  • Simple BNC connection of N4L shunts for high current applications
  • RS232, IEEE 488, USB, LAN, Torque, Speed and Extension ports
