Analyzers > Power Analyzer

PPA1500

Back

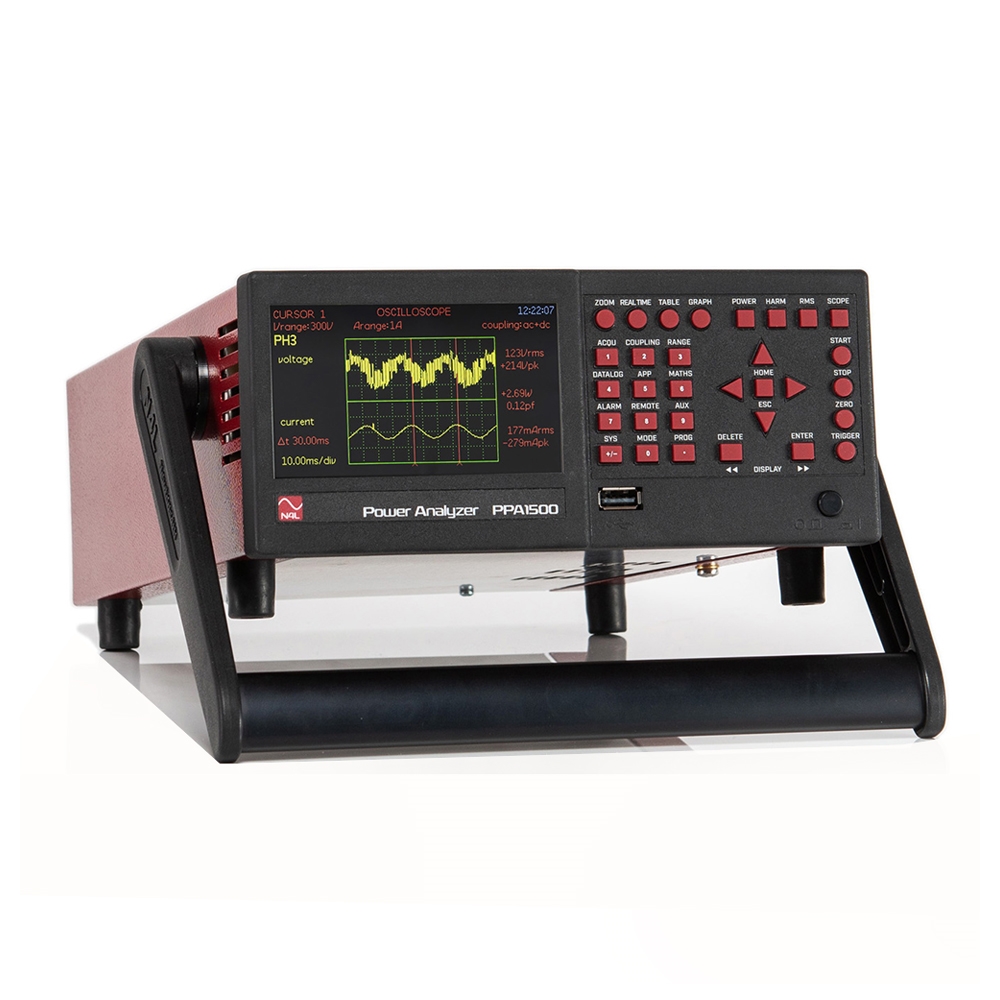

PPA1500

High performance compact power analysis

  • Specification

  • Features/Description

Accuracy
0.05%
Maximum Input Voltage
2500 Vpk (1000 Vrms)
Direct Input Current
300 Apk (20 Arms) / 1000 Apk (30 Arms)
  • 0.05% Basic accuracy
  • Frequency range DC and 10mHz to 1MHz
  • High precision internal shunts – Superior accuracy to any external shunt
  • 10 millidegree phase accuracy – Necessary for low power factor applications
  • 20 Arms (300 Apk) & 1000 Vrms (2500 Vpk) direct input
  • Unique x10 gain mode for Standby Power measurement
  • High speed sampling on all channels
  • True real time analysis with no measurement gap
  • 1, 2 or 3 phase versions
  • High contrast full colour graphic display
  • Simple BNC connection of N4L shunts for high current applications
  • RS232, USB, LAN, Extension and Auxiliary ports
Datasheet Manual Add to Enquiry
