Compact unit designed and manufactured compliant to CISPR 16-1-1.
FFT Scan Mode compliant to CISPR 16-3.
Peak, Quasi-Peak, CISPR Average, RMS and CISPR RMS Detectors.
Pre-selectors.
Tracking Generator.
Advanced software for EMC testing.
1Hz PRF CISPR 16-1-1 calibrated pulse weighting.

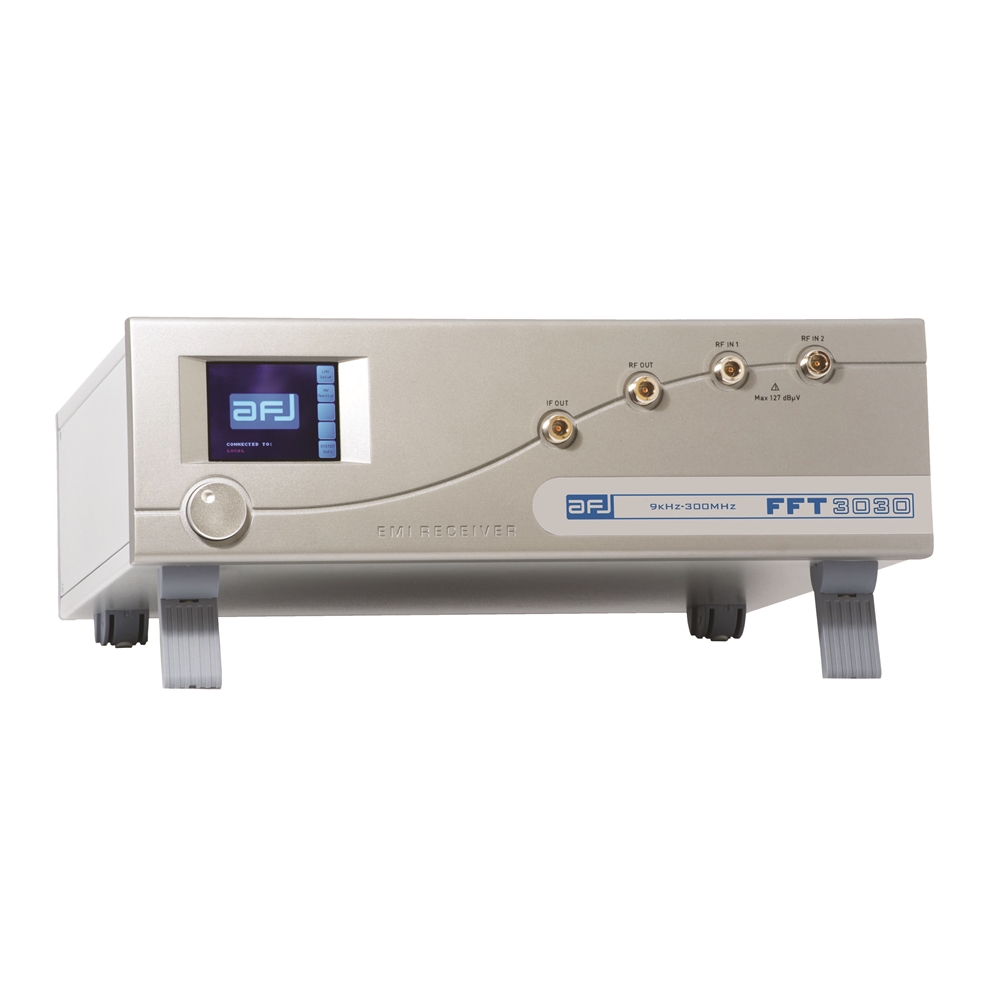

FFT 3030 EMI Receiver is ideal suited for measurement of electromagnetic interference in accordance with the requirements of CISPR 14-1 (household appliances industry) and CISPR 15 (lighting equipment industry) standards.
Further to conducted emission measurements from 9kHz to 30MHz with LISN, CISPR 14-1 standard requires radiated power emission measurements from 30MHz to 300MHz with absorbing clamp, CISPR-15 standard requires radiated emission measurements from 30MHz to 300MHz with CDN method.
