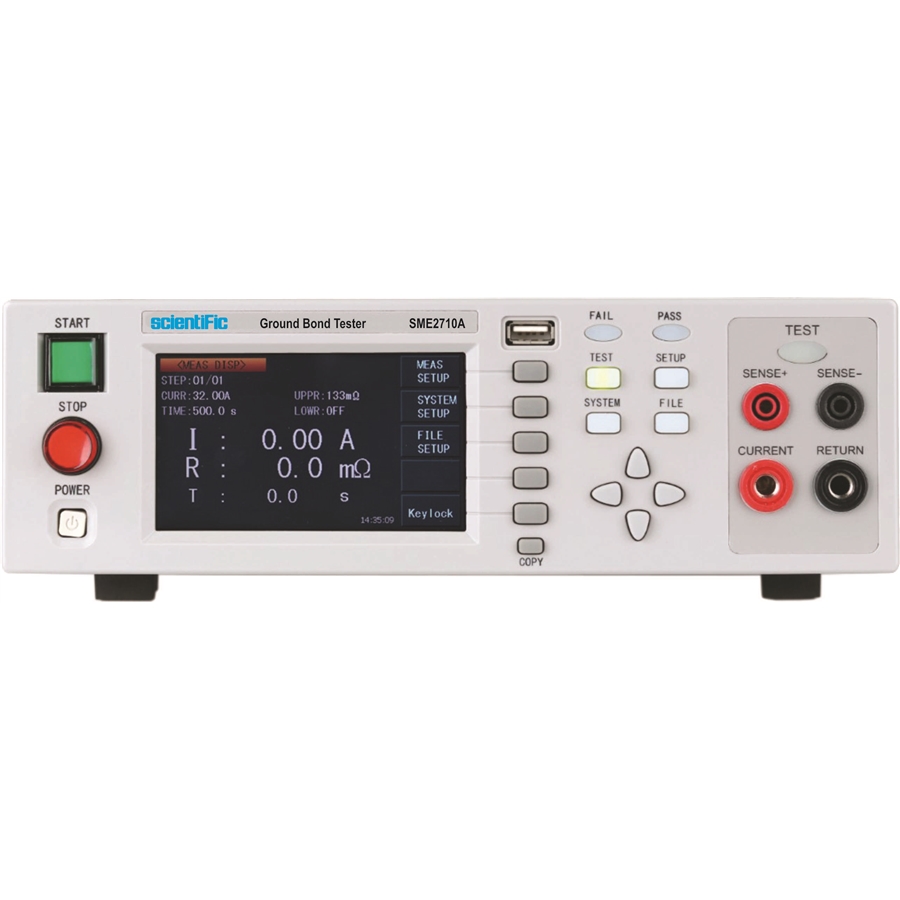

SME2710A

45A Ground Bond Tester

  • Specification

  • Features/Description

Input Power
230 Vac
AC Output
1A - 45 A ± 2% with Resistance 600mΩ
Maximum Output Voltage
8 V
  • Test current: 1.00 to 45.00 A
  • Grounding resistance range: 0 ~ 600 mΩ
  • Four-terminal test mode to ensure test accuracy.
  • The internal power amplifier circuit drives the current output, which is not affected by the power supply and load.
  • The output holes on the front and rear panels are designed to facilitate the integration of standard chassis.
